ESCAPE 1500-I – WITH TRIO 25′

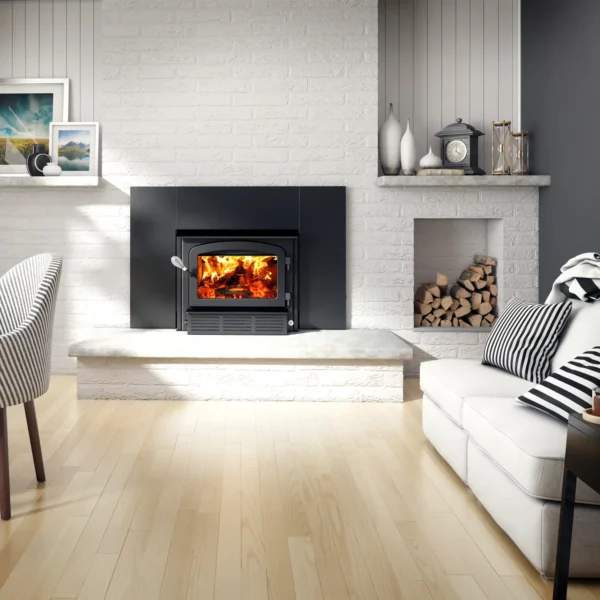

Escape 1500-I – Efficient and Eco-friendly Wood Insert by Drolet Fireplaces

Product Description

The Escape 1500-I with Trio 25′ by Drolet Fireplaces is the perfect solution for efficiently heating homes of up to 1,800 sq ft. This non-catalytic wood insert combines performance and eco-friendliness, emitting only 2.4 g/h of particulate emissions while delivering up to 65,000 BTU/h. It’s designed to update your masonry fireplace, making it both stylish and highly efficient.

Product Features

  • Burn time up to 7 hours
  • Accommodates logs up to 18″ in length.
  • Sturdy 5/16″ steel construction with a stainless-steel heat shield
  • EPA certified and proudly made in Canada.
  • Comes with a limited lifetime warranty.
  • Included: 6″ liner kit, 29″ x 44″ faceplate, blower, ceramic glass, ash lip, air damper
ESCAPE 1500-I - WITH TRIO 25'

Product Specifications

Fuel type: Dry cordwood (16″ recommended)
Recommended heating area: 500 – 1,800 sq ft
Overall firebox volume: 1.86 ft³
Maximum burn time: 7 hours
Maximum heat output-dry cordwood: 65,000 BTU/h
Minimum overall heat output rate: 9,800 BTU/h
Maximum overall heat output rate: 52,200 BTU/h
Average overall efficiency-dry cordwood (HHV): 68%
Average overall efficiency-dry cordwood (LHV): 73%
Optimum efficiency: 76%
Optimum heat transfer efficiency: 75%
Average particulate emission rate: 2.4 g/h
Average CO: 103 g/h
Flue outlet diameter: 6″
Dimensions: 27 1/4″ W x 22 3/8″ D x 21 1/4″ H
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Maximum log length: 18″
High-efficiency certified appliance: Yes
Warranty: Limited lifetime
Shipping weight: 360 lb (163 kg)
Clearances to combustibles: Vary, refer to the certification label

Installation Options

The Escape 1500-I can be installed in various fireplace settings, provided they meet the specified clearances and requirements. Consult the owner’s manual for installation details.

Fuel Types

Wood

Fuel Type Application

This wood insert is designed to burn dry cordwood, with 16″ lengths recommended for optimal performance.

Clearances and Cavity Measurements

The clearances to combustibles vary, so it’s crucial to refer to the certification label for specific measurements before installation.

Warranty

Limited Lifetime Warranty

Product Highlights

The Escape 1500-I – WITH TRIO 25′ by Drolet Fireplaces offers exceptional features for a wood insert, including:

Efficient heating for homes up to 1,800 sq ft
Low emissions with only 2.4 g/h of particulate emissions
Long burn time of up to 7 hours
Stylish design with a ceramic glass door and cast iron frame
Sturdy construction with stainless steel heat shield
Comes with a limited lifetime warranty
Proudly made in Canada

Company Overview for Manufacturer

Drolet Fireplaces is a renowned Canadian manufacturer with a strong reputation for producing high-quality heating appliances. With a commitment to environmental responsibility and energy efficiency, Drolet offers a range of wood stoves, pellet stoves, and inserts designed to meet the heating needs of today’s homes while reducing environmental impact. They take pride in their craftsmanship and provide reliable heating solutions to customers across North America.

FAQs

Q: What is the recommended heating area for the Escape 1500-I – WITH TRIO 25′?
A: The recommended heating area is 500 – 1,800 sq ft.

Q: Is the Escape 1500-I EPA certified?
A: Yes, it is EPA certified, meeting environmental standards.

Q: Can I burn other types of fuel in this wood insert?
A: The Escape 1500-I is designed to burn dry cordwood (16″ recommended).

Q: What is the maximum log length it can accommodate?
A: It can accommodate logs up to 18″ in length.

Q: Is there a warranty for this product?
A: Yes, the Escape 1500-I comes with a limited lifetime warranty.

Q: Does it come with an installation kit?
A: Yes, it includes a 6″ liner kit, faceplate, blower, ceramic glass, ash lip, and air damper.

Q: What are the clearances to combustibles for this wood insert?
A: Clearances to combustibles vary; please refer to the certification label for specific measurements.

Q: Is this wood insert suitable for Canadian winters?
A: Yes, it’s designed to provide efficient heating even in cold climates.

Q: Does it come with a blower for improved heat distribution?
A: Yes, a premium quality blower with 144 CFM is included.

Q: What is the burn time of the Escape 1500-I?
A: It has a burn time of up to 7 hours.

Q: Can I install it myself, or do I need professional installation?
A: Installation should be done according to the data and drawings in the owner’s manual. Professional installation is recommended.

Q: Does it come with a chimney liner?
A: Yes, it includes a 6″ liner kit.

Q: What is the firebox size of this wood insert?
A: The firebox size is 19 5/8″ W x 11 7/8″ H x 13 1/2″ D.

Q: Can I use this wood insert as the primary heat source for my home?
A: The recommended heated area may vary depending on factors like location, chimney draft, and fuel type. It’s best used as a supplementary heat source.

Q: Is this wood insert approved for use in the USA?
A: Yes, it’s EPA 2020 approved for the USA.

Q: What type of glass does it have?
A: It features ceramic glass.

Q: Can I use this wood insert in an existing masonry fireplace?
A: Yes, it’s designed to update masonry fireplaces and make them more efficient.

Q: What is the steel thickness of this wood insert?
A: The body is made of 3/16″ steel, and the top is 5/16″ thick.

Q: What is the Canadian Standard for emissions?
A: The Canadian Standard is CSA B415.1-10.

Q: Is it possible to install this wood insert in homes with low ceilings?
A: Some appliances have been tested with low ceilings; refer to the installation manual for guidance.

Q: Does this wood insert have a stainless-steel secondary-air system?
A: Yes, it includes a stainless-steel secondary-air system.

Q: What is the maximum heat output for dry cordwood?
A: The maximum heat output is 65,000 BTU/h (19 kW) for dry cordwood.

Q: Is this wood insert compliant with USA safety standards?
A: Yes, it complies with USA safety standards like UL 1482 and UL 737.

Q: Can I use this wood insert with a 12″ combustible mantle shelf?
A: Yes, it has a clearance of 27″ to a 12″ combustible mantle shelf.

Q: What is the overall efficiency of the wood insert?
A: The average overall efficiency ranges from 68% to 73%, depending on the heating value used.

Q: Does it come with a faceplate?
A: Yes, it includes a 29″ x 44″ faceplate.

Q: Is this wood insert suitable for Canadian winters?
A: Yes, it’s designed to provide efficient heating even in cold climates.

Q: What is the size of the glass door?
A: The glass door size is 15 3/4″ x 9 3/4″.

Q: What is the minimum fireplace opening required for installation?
A: The minimum fireplace opening dimensions are 27 1/2″ W x 21 1/2″ H x 12 3/4″ D.

Q: Does this wood insert come with a chimney cap?
A: Yes, it includes a chimney cap with no screen.
